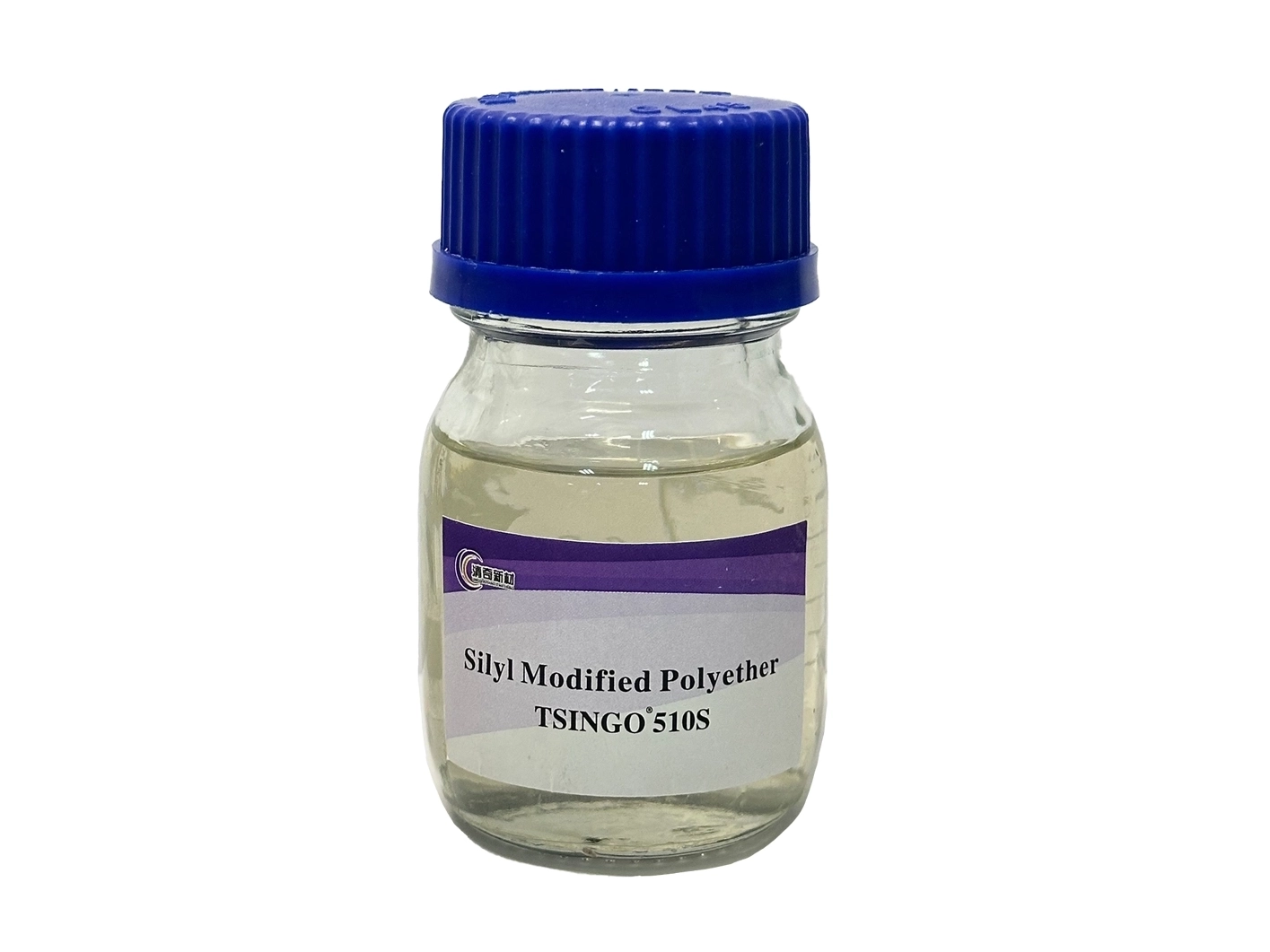

TSINGO® by Nanjing Qingqi is a silane-modified polyether resin, a high-molecular-weight liquid polymer with a high molecular weight polyether backbone. Modified with dimethoxy or trimethoxysilane, it forms an elastomer with moisture in the air when a catalyst is added. It’s a vital resin in sealants and adhesives, widely used across industries for its exceptional performance.Characteristics:
· Exceptional Weather Resistance
· Superior Adhesion
· No Substrate Contamination
· Coatable Surface
· Solvent-Free, Low VOC, Eco-Friendly
Grade：510S
Trimethoxyterminated
Light yellow viscous liquid
Viscosity 5000-9000(mPas/25℃)
Components | Mass fraction | Performance (dumbbell strips) | Unit | Result |
510S | 100 | Tack-free time | min | <120 |
plasticizer | 60 | Hardness | shoreA | 47 |
Nano Calcium Carbonate | 190 | Tensile strength | MPa | 2.1 |
titanium dioxide | 10 | 50% stretching strength | MPa | 1.2 |
Dehydrating agent | 2 | 100% stretching strength | MPa | 1.2 |
Coupling agent | 3 | Elongation | % | 150% |
Catalyzer | 0.1 |
|
|
|
Application characteristics: The resin has the characteristics of low viscosity, high modulus and high hardness;
Formula recommendation: The recommended dosage of catalyst DBTL is 0.02-0.2%, which can be adjusted based on the surface drying and curing speed;
Application recommendation: Suitable for caulking adhesive, adhesive, single, two-component adhesive, epoxy modified adhesive, can also be used with other resins;
TSINGO® by Nanjing Qingqi is a silane-modified polyether resin, a high-molecular-weight liquid polymer with a high molecular weight polyether backbone. Modified with dimethoxy or trimethoxysilane, it forms an elastomer with moisture in the air when a catalyst is added. It’s a vital resin in sealants and adhesives, widely used across industries for its exceptional performance.Characteristics:
· Exceptional Weather Resistance
· Superior Adhesion
· No Substrate Contamination
· Coatable Surface
· Solvent-Free, Low VOC, Eco-Friendly
Grade：510S
Trimethoxyterminated
Light yellow viscous liquid
Viscosity 5000-9000(mPas/25℃)
Components | Mass fraction | Performance (dumbbell strips) | Unit | Result |
510S | 100 | Tack-free time | min | <120 |
plasticizer | 60 | Hardness | shoreA | 47 |
Nano Calcium Carbonate | 190 | Tensile strength | MPa | 2.1 |
titanium dioxide | 10 | 50% stretching strength | MPa | 1.2 |
Dehydrating agent | 2 | 100% stretching strength | MPa | 1.2 |
Coupling agent | 3 | Elongation | % | 150% |
Catalyzer | 0.1 |
|
|
|
Application characteristics: The resin has the characteristics of low viscosity, high modulus and high hardness;
Formula recommendation: The recommended dosage of catalyst DBTL is 0.02-0.2%, which can be adjusted based on the surface drying and curing speed;
Application recommendation: Suitable for caulking adhesive, adhesive, single, two-component adhesive, epoxy modified adhesive, can also be used with other resins;
The company focuses on silane modified polyether resins, serving industries such as construction, automotive, and railway transportation, providing products and basic formulation technology.
